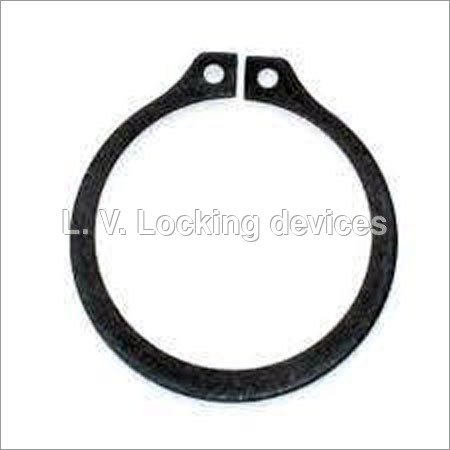

Shaft Circlips

- Minimum Order Quantity
- 50 Piece
Features:
- Superior performance
- Easy maintenance
- High efficiency
- Durability
Nominal dimension | RING | GROOVE | |||||||||
Shaft dia. d1 | s h 11 | d3 | Tolerance | a Max | b ~ | d4 Expanded | d5 | d2 | Tolerance | M H13 | Axial Force kgf. |
15 |
| 13.8 |
|
| 2.4 | 25.5 |
| 14.3 |
|
| 400 |
16 | 1.5 | 14.7 |
| 4.8 | 2.5 | 27.5 |
| 15.2 |
| 1.6 | 490 |
17 |
| 15.7 | +0.18 | 5 | 2.6 | 28.5 |
| 16.2 | hl1 |
| 520 |
18 |
| 16.5 | -0.36 | 5.1 | 2.7 | 29.5 |
| 17 |
|
| 690 |
20 |
| 18.5 |
| 5.5 | 3 | 32.5 |
| 19 |
|
| 770 |
22 | 1.75 | 20.5 |
|
| 3.1 | 35.5 |
| 21 |
| 1.85 | 845 |
24 |
| 22.2 |
| 6 | 3.2 | 38 |
| 22.9 |
|
| 1 010 |
25 |
| 23.2 | +0.21 | 6.3 | 3.4 | 39 |
| 23.9 |
|
| 1 060 |
28 | 2 | 25.9 | -0.42 | 6.4 | 3.5 | 42.5 |
| 26.6 |
|
| 1 500 |
30 |
| 27.9 |
| 6.5 | 4.1 | 44.5 |
| 28.6 |
|
| 1 620 |
32 |
| 29.6 |
|
| 4.2 | 46.5 |
| 30.3 | hl2 |
| 2 100 |
34 |
| 31.5 | +0.25 | 6.6 | 4.3 | 49 |
| 32.3 |
|
| 2 220 |
35 |
| 32.2 | -0.50 | 6.7 | 4.4 | 50 |
| 33 |
| 2.15 | 2 640 |
38 | 2.5 | 35.2 |
| 6.8 | 4.5 | 53 |
| 36 |
|
| 2 880 |
40 |
| 36.5 |
| 7 | 4.7 | 55.5 |
| 37.5 |
|
| 3 840 |
42 |
| 38.5 |
| 7.2 |
| 58 |
| 39.5 |
|
| 4 000 |
45 |
| 41.5 | +0.39 | 7.5 | 5 | 61.5 |
| 42.5 |
|
| 4 300 |
48 |
| 44.5 | -0.78 | 7.8 | 5.1 | 65 |
| 45.5 |
| 2.65 | 4 600 |
50 |
| 45.8 |
| 8 | 5.2 | 68 |
| 47 |
|
| 5 700 |
52 |
| 47.8 |
| 8.2 | 5.4 | 70 |
| 49 |
|
| 5 950 |
55 | 3 | 50.8 |
| 8.5 | 5.6 | 73.5 |
| 52 |
|
| 6 300 |
58 |
| 53.8 |
| 8.8 | 5.8 | 77 |
| 55 |
|
| 6 650 |
60 |
| 55.8 |
| 9 | 6.3 | 79 |
| 57 |
| 3.15 | 6 900 |
65 |
| 60.8 | +0.46 | 9.3 | 6.6 | 85 |
| 62 |
|
| 7 500 |
70 |
| 65.5 | -0.92 | 9.5 | 7 | 90.5 |
| 67 |
|
| 8 050 |
75 | 4 | 70.5 |
| 9.7 |
| 96 |
| 72 |
|
| 8 600 |
80 |
| 74.5 |
| 9.8 | 7.-4 | 101 |
| 76.5 |
|
| 10 700 |
85 |
| 79.5 |
| 10 | 7.8 | 106.5 |
| 81.5 |
| 4.15 | 11 400 |
90 |
| 84.5 | +0.54 | 10.2 | 8.2 | 112 |
| 86.5 |
|
| 12 100 |
100 |
| 94.5 | -1.08 | 10.5 | 9 | 124 |
| 96.5 |
|
| 13 500 |
